General Specifications
Display

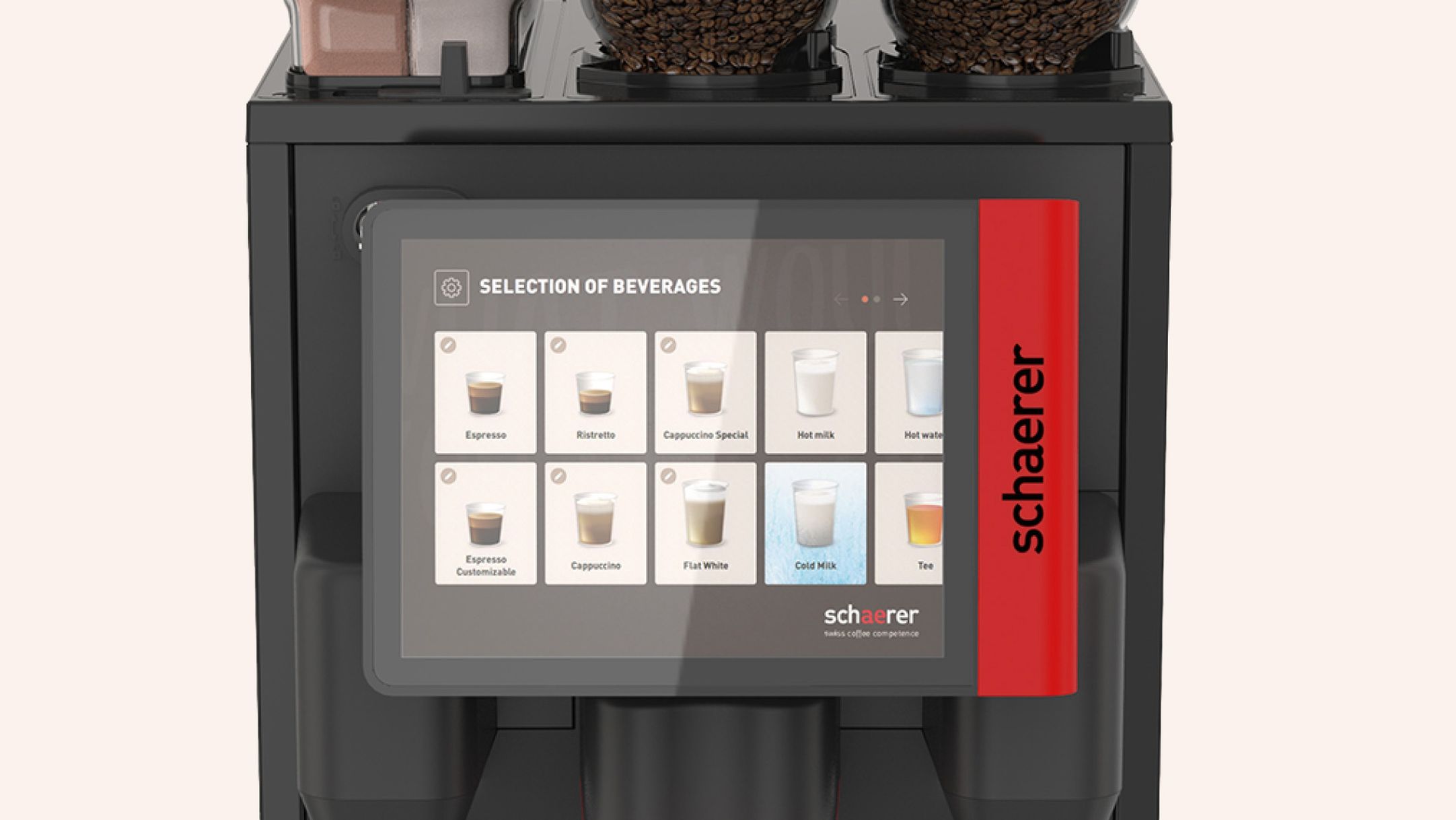

8" touch display
8" touch display
GUI modes
Staff mode
Operated service i.e. for restaurants, bistros and coffee shops.
Guest mode
Self-service i.e. for breakfast areas in hotels, company restaurants, gas stations or convenience stores.
Frequent user mode
Self-service i.e. for offices.
Staff mode
Guest mode
Frequent user mode
Operated service i.e. for restaurants, bistros and coffee shops.
Self-service i.e. for breakfast areas in hotels, company restaurants, gas stations or convenience stores.
Self-service i.e. for offices.
Colours
Red
Black
Special Color: On request
Red
Black
Special Color: On request

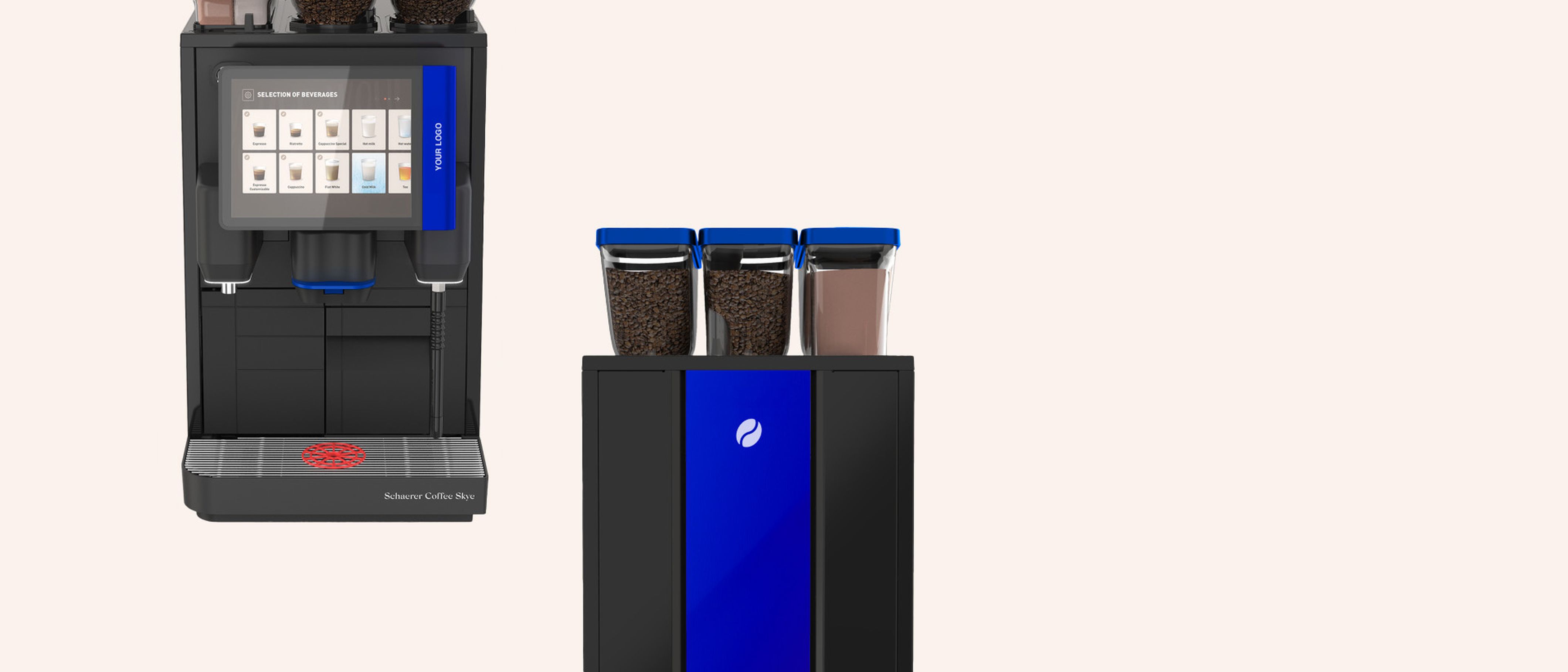

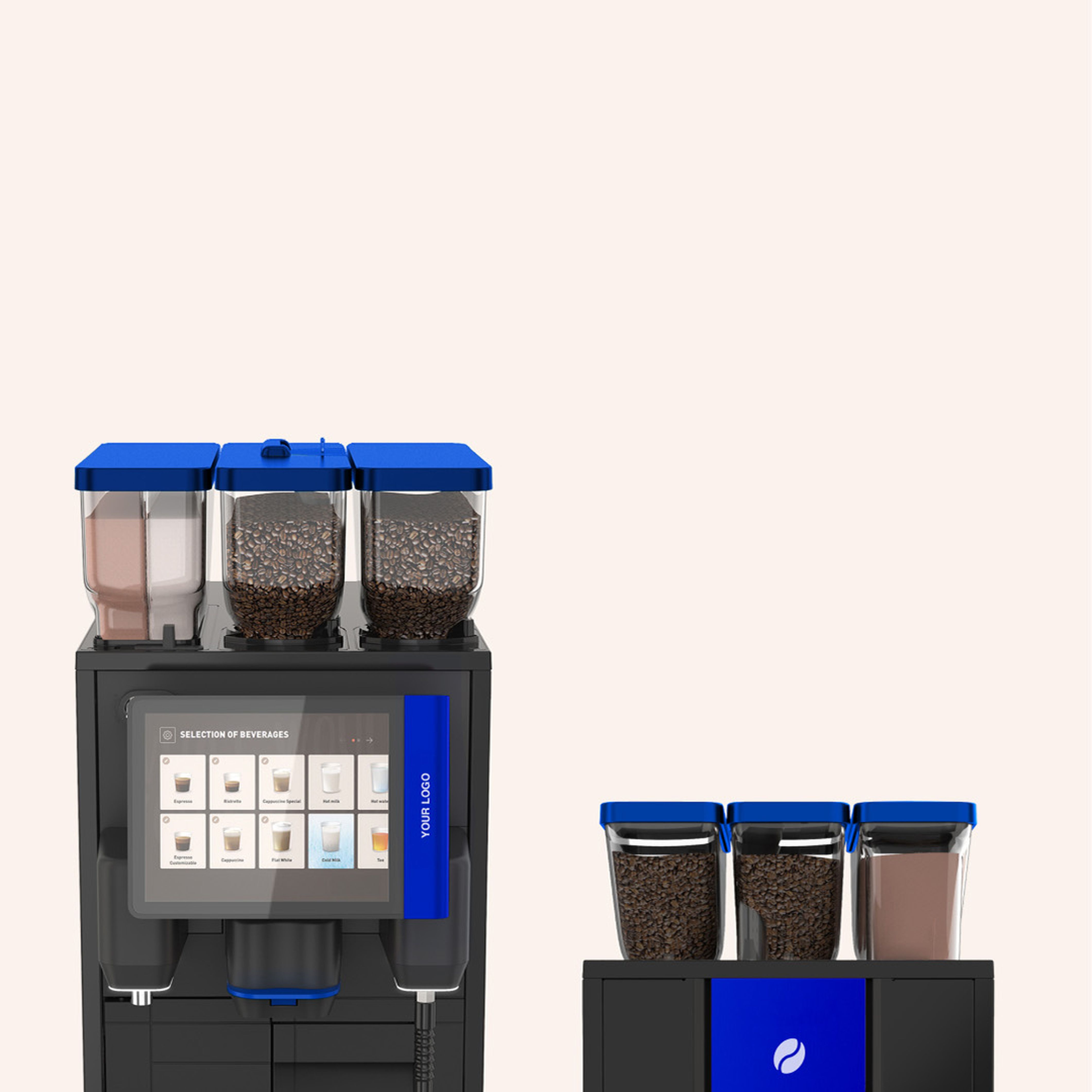

We can built exactly for you
For major customers with clear requirements and high volumes, Schaerer is more than just a machine manufacturer - we are your development partner.
Individual Solutions
Features

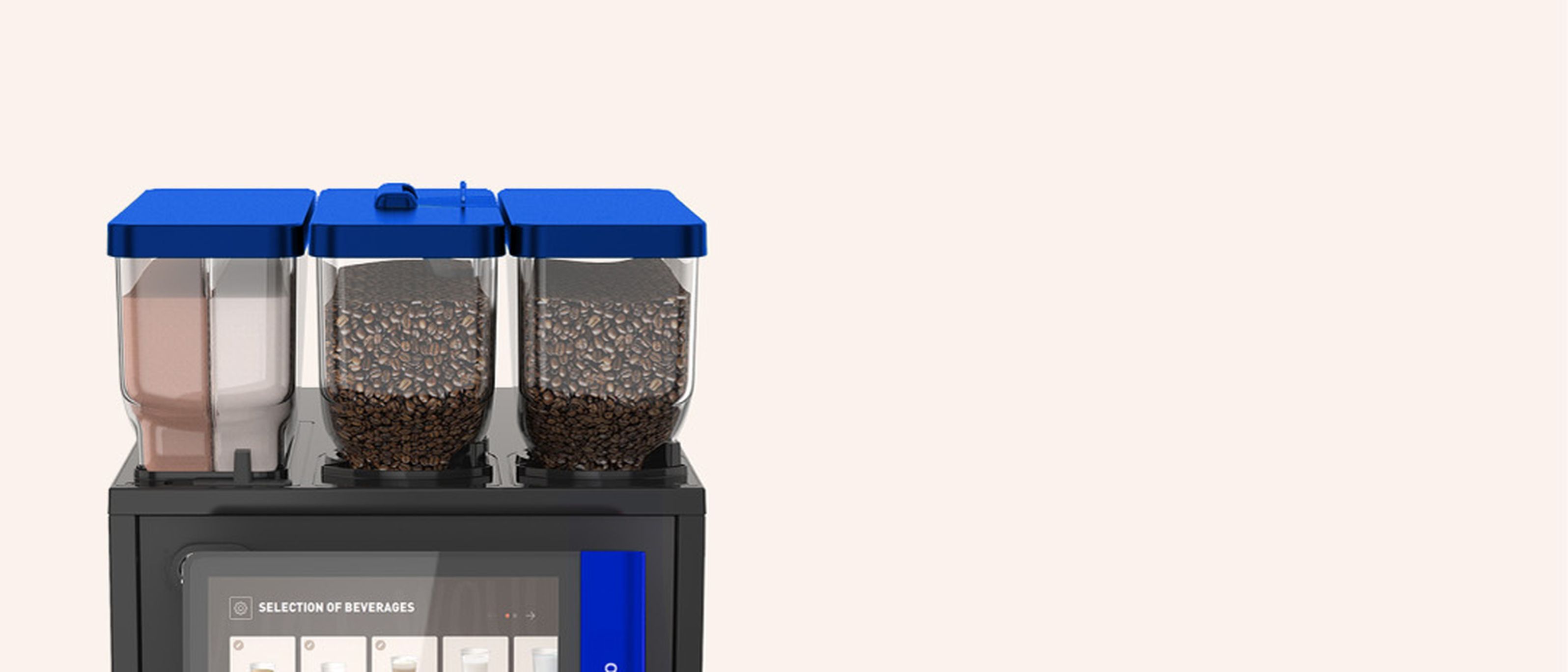

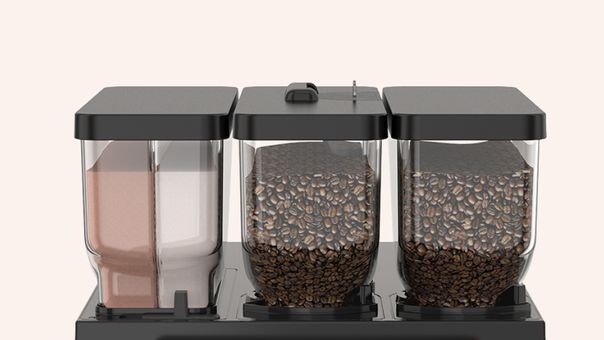

From the second hopper onwards, you can choose whether it’s configured for beans, powder or a twin-powder system – giving you maximum flexibility and beverage variety.

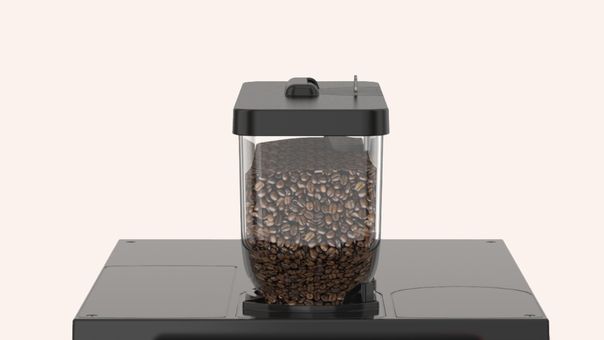

1 Bean Hopper (750 g)
-
-

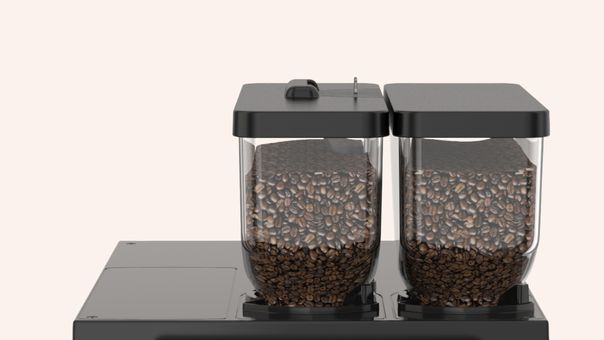

2 Bean Hopper (750 g each)
Single Powder
1 Single Powder Container (2000g) can be installed instead of third hopper.
Twin Powder
1 Twin Powder Container (2x1000g) can be installed for two types of powder.
2 Bean Hopper, 1 Powder Hopper (750 g Bean, 2000 g Powder)
Single Powder
1 Single Powder Container (2000g) can be installed instead of third hopper.
Twin Powder
1 Twin Powder Container (2x1000g) can be installed for two types of powder.
From the second hopper onwards, you can choose whether it’s configured for beans, powder or a twin-powder system – giving you maximum flexibility and beverage variety.
1 Bean Hopper (750 g)
2 Bean Hopper (750 g each)
2 Bean Hopper, 1 Powder Hopper (750 g Bean, 2000 g Powder)
-
Single Powder
1 Single Powder Container (2000g) can be installed instead of third hopper.
Single Powder
1 Single Powder Container (2000g) can be installed instead of third hopper.
-
Twin Powder
1 Twin Powder Container (2x1000g) can be installed for two types of powder.
Twin Powder
1 Twin Powder Container (2x1000g) can be installed for two types of powder.
Each bean hopper is paired with a high-precision, slow-running grinder. For maximum flexibility, an optional espresso grinder can be assigned to every hopper – opening up the full spectrum of recipe possibilities.
High precision, slow running grinder
Espresso grinder
Each bean hopper is paired with a high-precision, slow-running grinder. For maximum flexibility, an optional espresso grinder can be assigned to every hopper – opening up the full spectrum of recipe possibilities.
High precision, slow running grinder
Espresso grinder
1 hot water boiler
For coffee and tea
+ 1 steam boiler
Parallel dispensing of steam and coffee is only possible in staff mode (must be activated).
Simultaneous dispensing of hot water and steam, or hot water and coffee, is not possible.
A steam boiler is required for PureFoam/BestFoam.
1 hot water boiler
For coffee and tea
+ 1 steam boiler
Parallel dispensing of steam and coffee is only possible in staff mode (must be activated).
Simultaneous dispensing of hot water and steam, or hot water and coffee, is not possible.
A steam boiler is required for PureFoam/BestFoam.
16 g brewing unit
1 brewing cycle of 21g coffee (90ml)
98sec
30 g brewing unit
For larger beverage volumes or double and triple shots.
Saves you time on triple shots - on 16oz beverages even 10-15% of the coffee needed.
1 brewing cycle of 21g coffee (90ml)
62sec
16 g brewing unit
1 brewing cycle of 21g coffee (90ml)
98sec
30 g brewing unit
For larger beverage volumes or double and triple shots.
Saves you time on triple shots - on 16oz beverages even 10-15% of the coffee needed.
1 brewing cycle of 21g coffee (90ml)
62sec
Standard Cleaning System
-
Descaling Uptime!
Prevents scale-related malfunctions by alerting you when it senses that descaling is needed. No service technician needed.
Standard Cleaning System
Descaling Uptime!
-
Prevents scale-related malfunctions by alerting you when it senses that descaling is needed. No service technician needed.
PureFoam
A milk pump system with controlled temperature that can supply hot milk & hot milk foam, as well as cold milk, to offer a wide variety of beverage options. Hot milk and milk foam dispensing is consistent and ranges from 50 °C to 70°C. The milk foam is homogenous, creamy & fine-pored with a foam content of up to 60%.
BestFoamTM
Barista-quality milk foam, hot and cold: The patented Best Foam™ system delivers hot and cold foam in a range of consistencies – smooth, creamy, or firm. It guarantees professional results, making every cappuccino, latte, or vegan alternative a true barista experience.
PureFoam
BestFoamTM
A milk pump system with controlled temperature that can supply hot milk & hot milk foam, as well as cold milk, to offer a wide variety of beverage options. Hot milk and milk foam dispensing is consistent and ranges from 50 °C to 70°C. The milk foam is homogenous, creamy & fine-pored with a foam content of up to 60%.
Barista-quality milk foam, hot and cold: The patented Best Foam™ system delivers hot and cold foam in a range of consistencies – smooth, creamy, or firm. It guarantees professional results, making every cappuccino, latte, or vegan alternative a true barista experience.

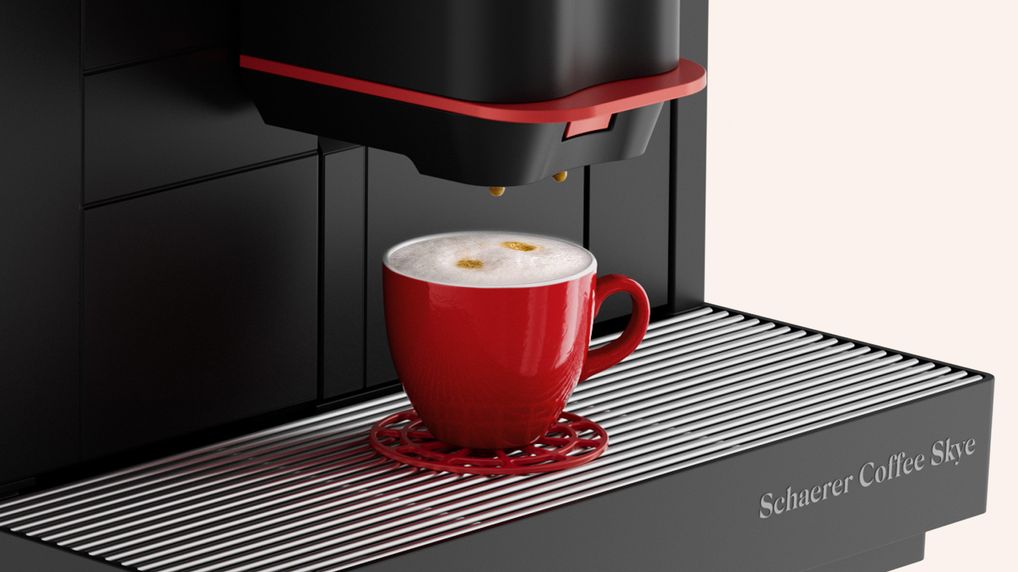

Adjustable outlet
Can be manually adjusted between 65-185 mm.
Single outlet
-
Double outlet
-
Hot water outlet left
Choose between central (for self-service) or left (for operated).
Hot water outlet central
Incl. additional water for americano
Brewing accelerator
Faster preparation of the drink.
Additional water (Americano)
To prepare the perfect Americano, the central spout can be equipped with a seperate hot water dispenser.
Adjustable outlet
Can be manually adjusted between 65-185 mm.
Single outlet
-
Double outlet
-
Hot water outlet left
Choose between central (for self-service) or left (for operated).
Hot water outlet central
Incl. additional water for americano
Brewing accelerator
Faster preparation of the drink.
Additional water (Americano)
To prepare the perfect Americano, the central spout can be equipped with a seperate hot water dispenser.

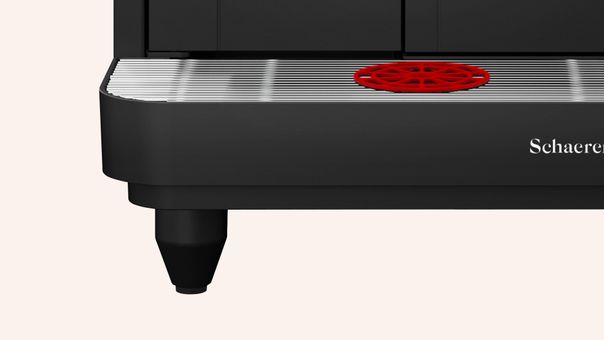

High feet
40mm or 70mm

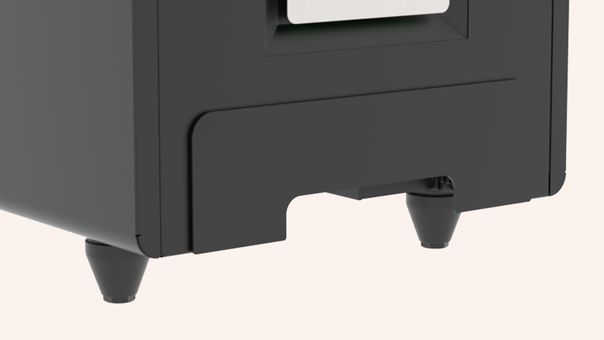

Magnetic rear panel cover
For an optimised appearance. Covers the machine’s lower rear opening, creating cohesive look. Easy upgrade - it can be conveniently ordered and installed later.

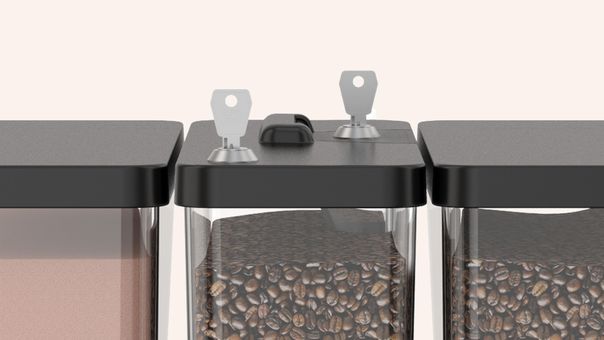

Lockable kit
Locks the bean hoppers and ingredient containers for added security. Prevents unauthorized access and ensures safe, reliable operation. Easy upgrade - can be installed anytime.
High feet
Magnetic rear panel cover
Lockable kit
40mm or 70mm
For an optimised appearance. Covers the machine’s lower rear opening, creating cohesive look. Easy upgrade - it can be conveniently ordered and installed later.
Locks the bean hoppers and ingredient containers for added security. Prevents unauthorized access and ensures safe, reliable operation. Easy upgrade - can be installed anytime.
Product Parameters
1L, N, PE
2L, PE
2L, PE
External dimensions
(width/height/depth)
Empty weight
220 - 240 V, 50/60 Hz
2000–2400 W, 10 A, 3 × 1 mm²
200 - 220 V, 50/60 Hz
1800–2200 W, 10 A, 3 × 1.5 mm²
200-220 V 2, 50/60 Hz
1800-2200 W, 10 A, 3 × 1 mm² 2600-3200 W, 15 A, 3 × 1.5 mm² 4700-5800 W, 30 A, 3 × 4 mm²
330/576/680 mm
Approx. 40 kg (net)
1L, N, PE
220 - 240 V, 50/60 Hz
2000–2400 W, 10 A, 3 × 1 mm²
2L, PE
200 - 220 V, 50/60 Hz
1800–2200 W, 10 A, 3 × 1.5 mm²
2L, PE
200-220 V 2, 50/60 Hz
1800-2200 W, 10 A, 3 × 1 mm² 2600-3200 W, 15 A, 3 × 1.5 mm² 4700-5800 W, 30 A, 3 × 4 mm²
External dimensions
(width/height/depth)
330/576/680 mm
Empty weight
Approx. 40 kg (net)
