General Specifications
Beverages
Output per day
80 cups/day (recommended)
Beverages per hour
<60 cups
Range of beverages
>40
Adjustment of beverage size
For a variety of beverages

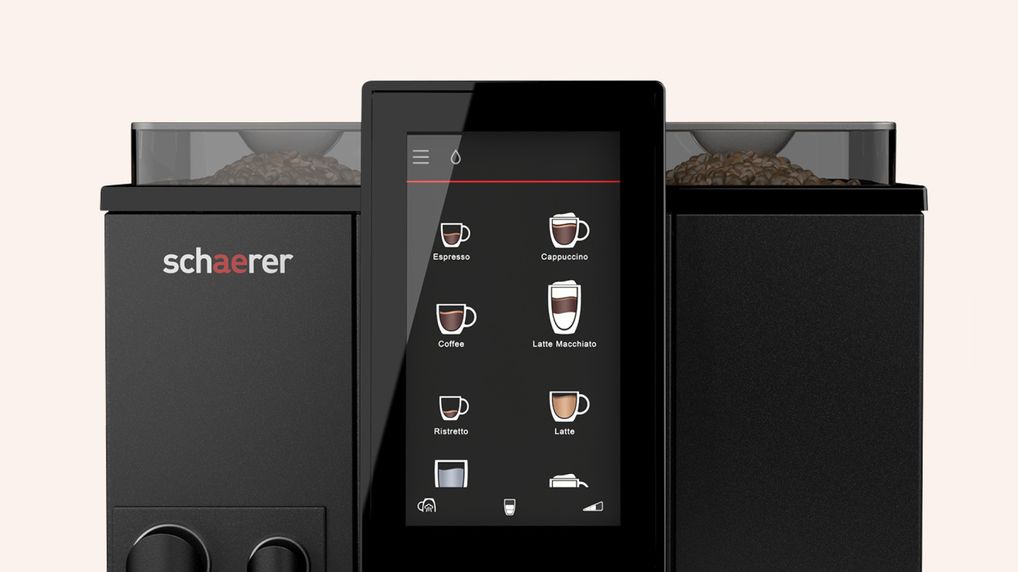

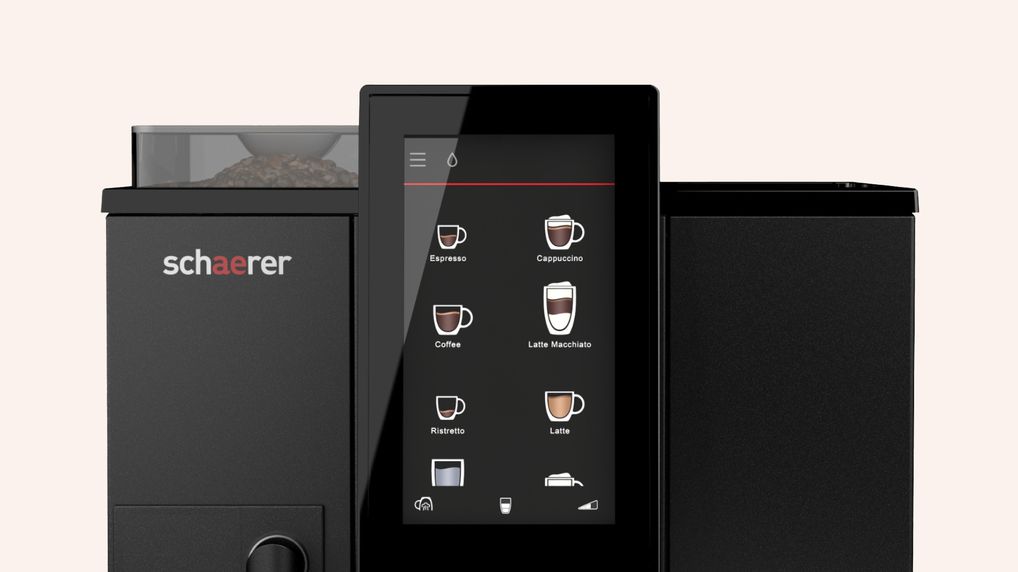

Display
7'' TouchIT display
7'' TouchIT display
Colours
Black
Black
Features

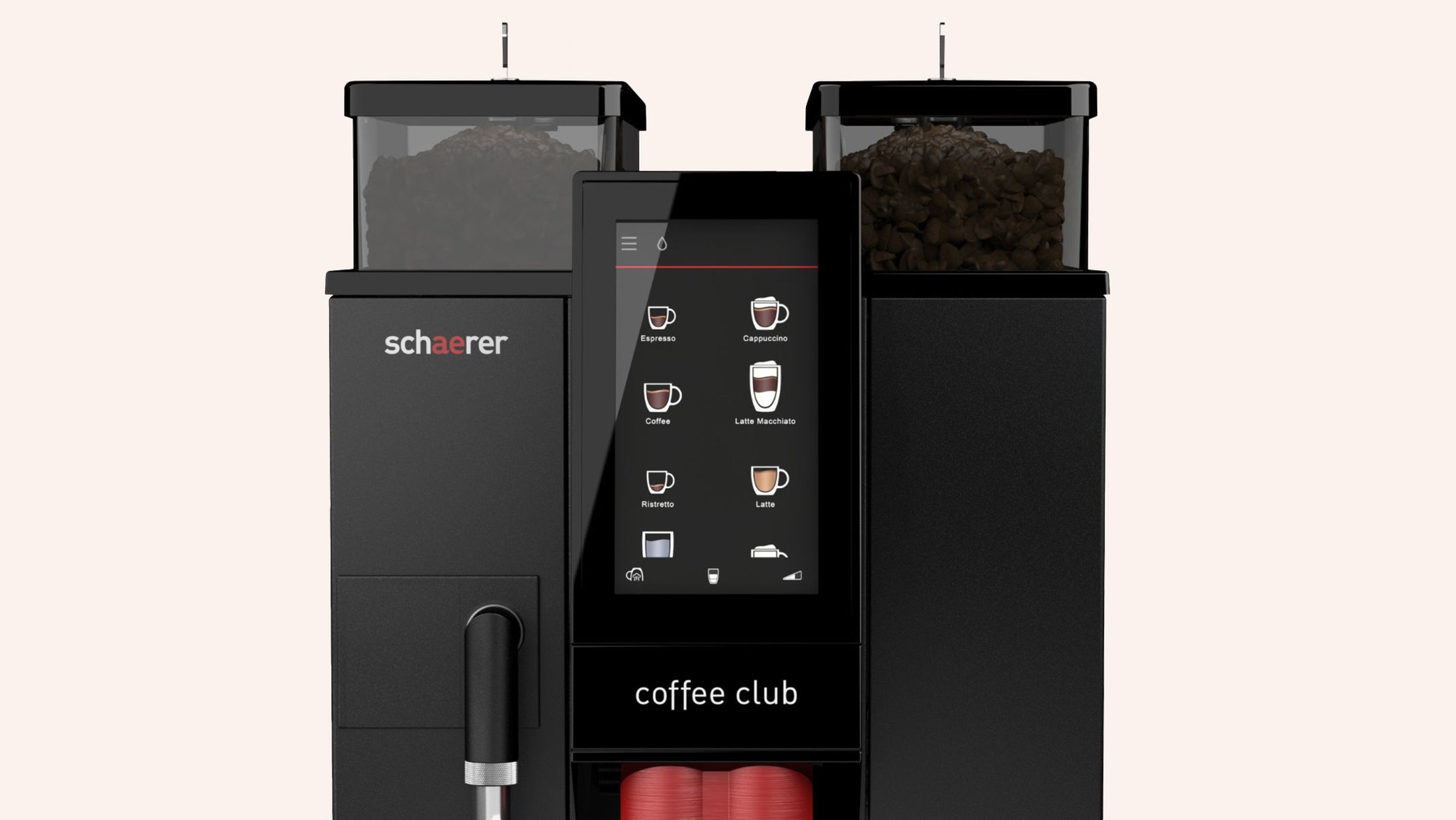

Hoppers
Hoppers
1 Bean Hopper
(550 g)
Bean Hopper Extension
(From 550 g to 1100 g, optional)
-
-
2 Bean Hoppers
(550 g each)
Bean Hopper Extension
(From 550 g to 1100 g, optional)
Powder Hopper
For one type of powder
(700 g or 2200g extended, optional)
Twin Powder
For two types of powder
(1000 g each, optional)
1 Bean Hopper
(550 g)
2 Bean Hoppers
(550 g each)
Bean Hopper Extension
(From 550 g to 1100 g, optional)
Bean Hopper Extension
(From 550 g to 1100 g, optional)
-
Powder Hopper
For one type of powder
(700 g or 2200g extended, optional)
-
Twin Powder
For two types of powder
(1000 g each, optional)
Grinders
Grinders
Each bean hopper is paired with a high-precision, slow-running grinder. For maximum flexibility, an optional espresso grinder can be assigned to every hopper—opening up the full spectrum of recipe possibilities.
Each bean hopper is paired with a high-precision, slow-running grinder. For maximum flexibility, an optional espresso grinder can be assigned to every hopper—opening up the full spectrum of recipe possibilities.
Boilers & Brewing units
Boilers & Brewing units
1 hot water boiler
+ 1 steam boiler
For coffee and tea - for simultaneous dispensing of hot water, steam and coffee at different temperatures.
16g brewing unit
PL = Plastic
1 hot water boiler
+ 1 steam boiler
For coffee and tea - for simultaneous dispensing of hot water, steam and coffee at different temperatures.
16g brewing unit
PL = Plastic
Cleaning System
Cleaning System
CleanIT
Semi-automatic cleaning: The Coffee Club cleaning concept significantly reduces the time required. To comply with HACCP hygiene analysis, the system must be cleaned once a week. The innovative CleanIT feature also comes into play during daily rinse cycles: connect the milk system to the steam connection, start the program, and you're done.
CleanIT
Semi-automatic cleaning: The Coffee Club cleaning concept significantly reduces the time required. To comply with HACCP hygiene analysis, the system must be cleaned once a week. The innovative CleanIT feature also comes into play during daily rinse cycles: connect the milk system to the steam connection, start the program, and you're done.

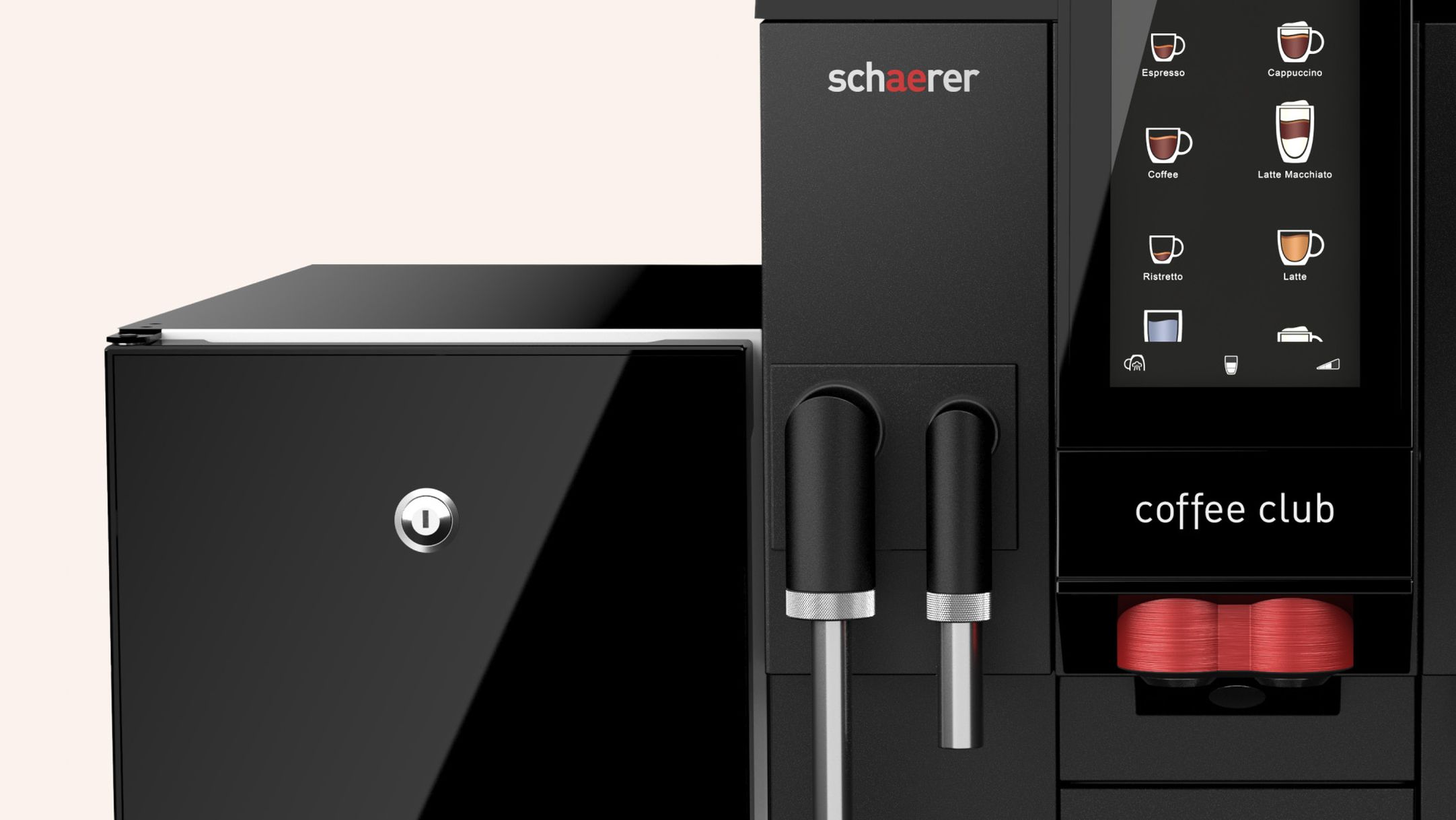

Milk System
Milk System
Milk Smart
Has to be combined with side cooling unit. For the preparation of high quality coffee and milk specialities and milk foam.
Milk Smart
Has to be combined with side cooling unit. For the preparation of high quality coffee and milk specialities and milk foam.
Steam system
Steam system
Our integrated steaming and frothing systems allow both beginners and baristas to maximize the full potential of their Schaerer coffee machine. The standard steam wand depends on the selected configuration.
Powersteam
Classic manual milk heating and frothing for pro baristas.
Supersteam
Fully automatic milk heating and frothing at desired temperature and consistency for up to eight different beverages.
Our integrated steaming and frothing systems allow both beginners and baristas to maximize the full potential of their Schaerer coffee machine. The standard steam wand depends on the selected configuration.
Powersteam
Supersteam
Classic manual milk heating and frothing for pro baristas.
Fully automatic milk heating and frothing at desired temperature and consistency for up to eight different beverages.

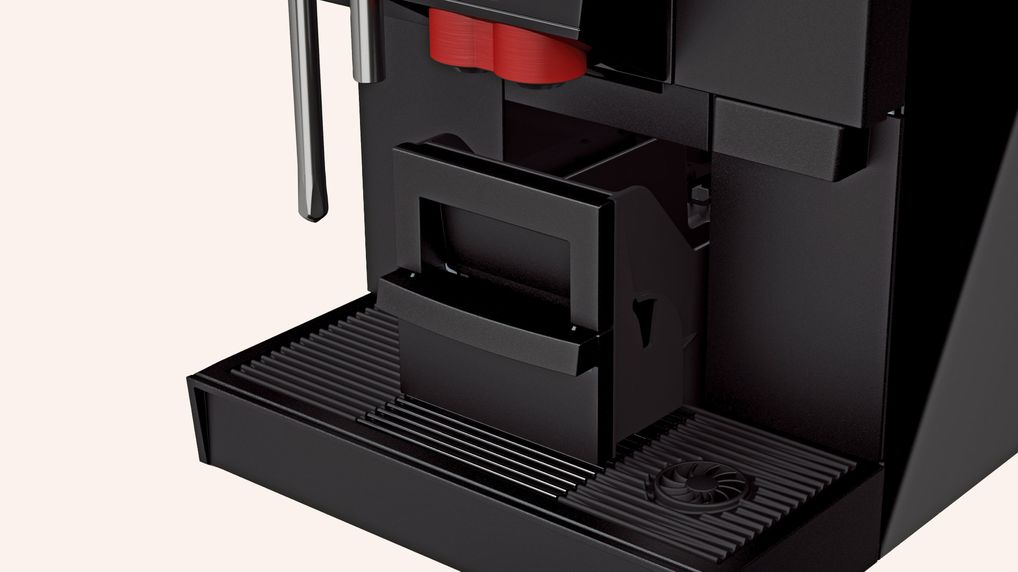

Outlet
Outlet

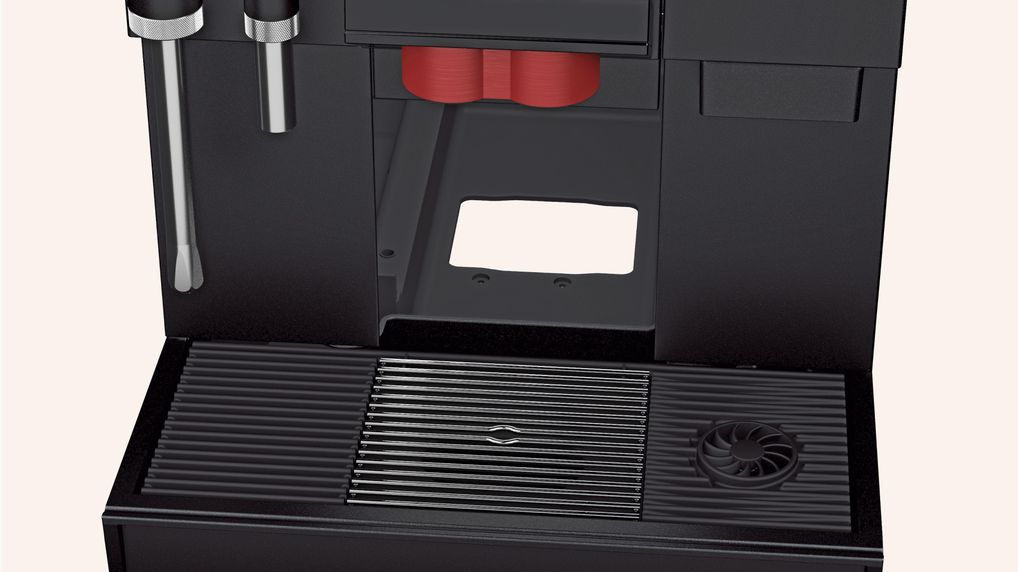

Manually adjustable cup table
Fold-out cup tray integrated into the grounds disposal unit.
Outlet height
105 / 175 mm
Double outlet
-
Manually adjustable cup table
Fold-out cup tray integrated into the grounds disposal unit.
Outlet height
105 / 175 mm
Double outlet
-

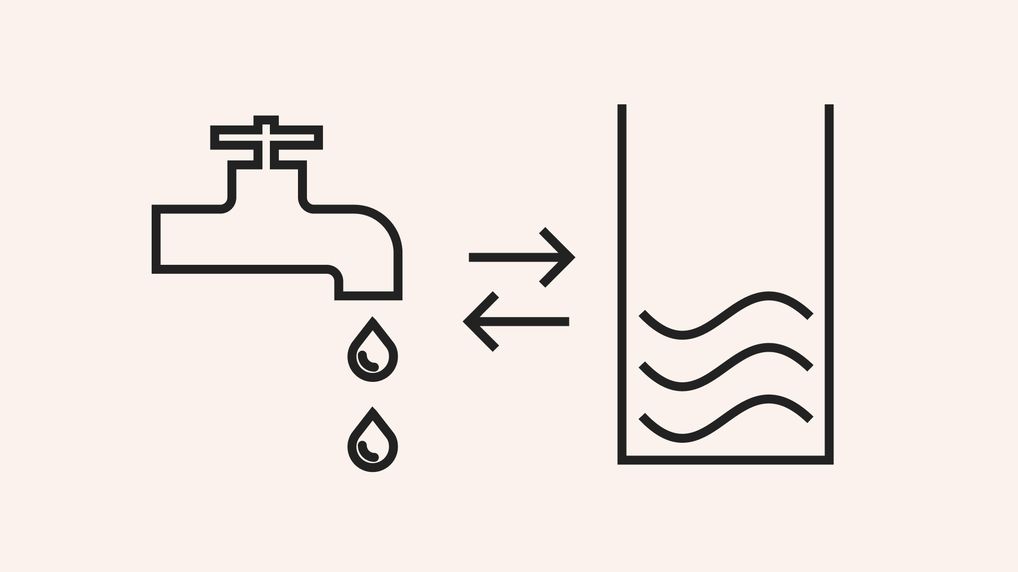

Water supply
Water supply
Integrated water tank
4,5l
Mains water supply
Can be connected directly to the mains water supply using a fixed water kit.
-
Integrated water tank
Mains water supply
Can be connected directly to the mains water supply using a fixed water kit.
4,5l
-

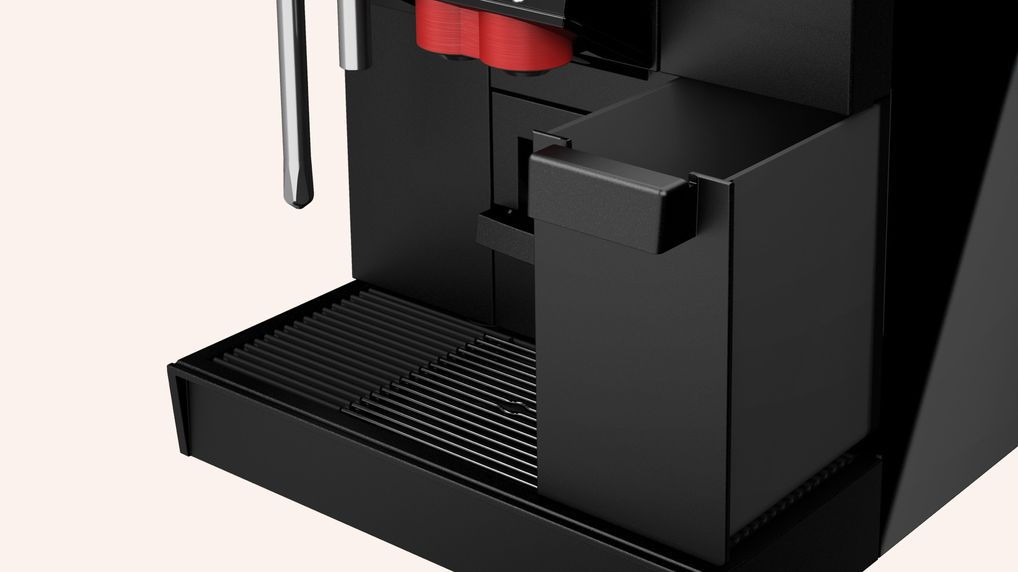

Grounds disposal
Grounds disposal
Grounds container
30 pieces
Undercounter ground disposal
Under counter container can be easily installed with simple machine modification.
Grounds container
Undercounter ground disposal
30 pieces
Under counter container can be easily installed with simple machine modification.
Connectivity
Connectivity
Payment options
MDB-S, DIVA2, DIVA2 Max
Coin & token tester
Coin changer
Schaerer Coffee Link
Payment options
MDB-S, DIVA2, DIVA2 Max
Coin & token tester
Coin changer
Schaerer Coffee Link
