General Specifications

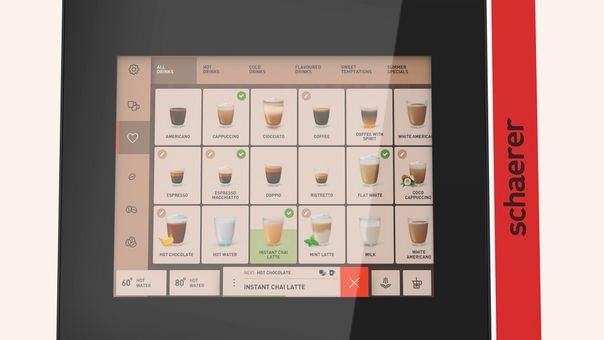

Display

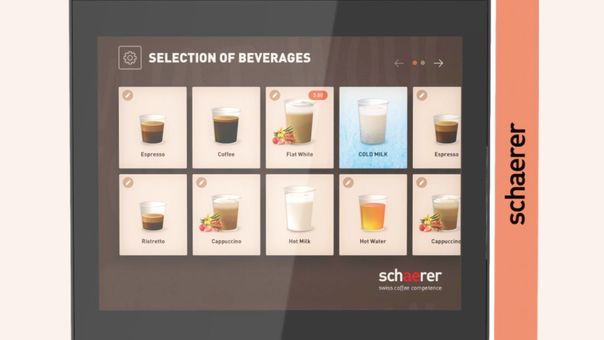

10.4'' touch display
12.1'' touch display
Second Screen
10.4'' touch display
12.1'' touch display
Second Screen
GUI modes
Staff mode
Operated service i.e. for restaurants, bistros and coffee shops.
Guest mode
Self-service i.e. for breakfast areas in hotels, company restaurants, gas stations or convenience stores.
Frequent user mode
Self-service i.e. for offices.
Easy Access
Enables wheelchair-friendly operation via buttons in the drip tray.
Staff mode
Guest mode
Frequent user mode
Easy Access
Operated service i.e. for restaurants, bistros and coffee shops.
Self-service i.e. for breakfast areas in hotels, company restaurants, gas stations or convenience stores.
Self-service i.e. for offices.
Enables wheelchair-friendly operation via buttons in the drip tray.
Colours
Copper matte
Red silky glossy
Black glossy
Special Color: On request
Copper matte
Red silky glossy
Black glossy
Special Color: On request
We can built exactly for you
For major customers with clear requirements and high volumes, Schaerer is more than just a machine manufacturer - we are your development partner.
Individual Solutions

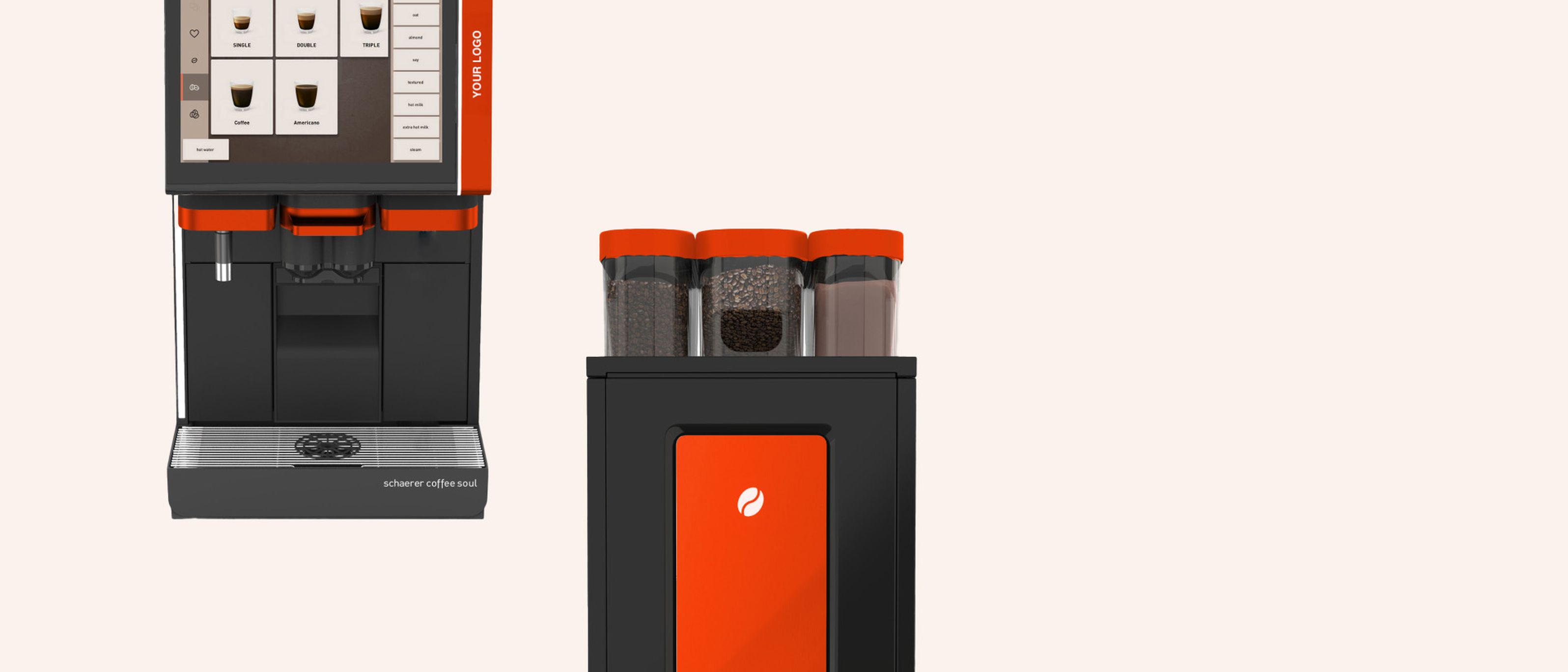

Features
From the second hopper onwards, you can choose whether it’s configured for beans, powder or a twin-powder system – giving you maximum flexibility and beverage variety.

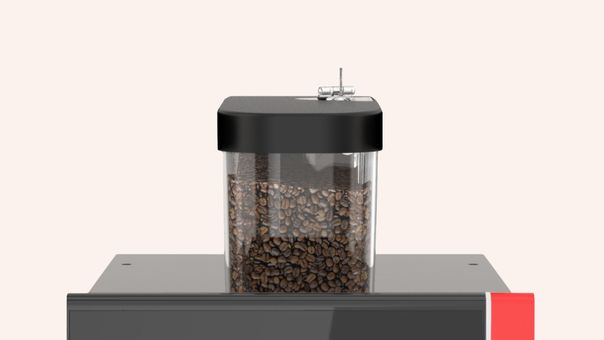

1 Bean Hopper (1200 g)
-
-

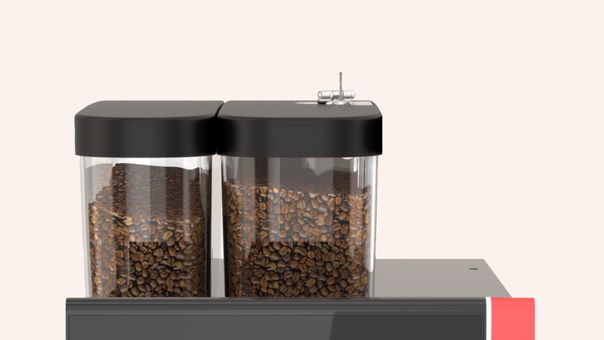

2 Bean Hopper (1200 g each)
Single Powder
1 Single Powder Container can be installed instead of third hopper.
Twin Powder
1 Twin Powder Container can be installed for two types of powder.

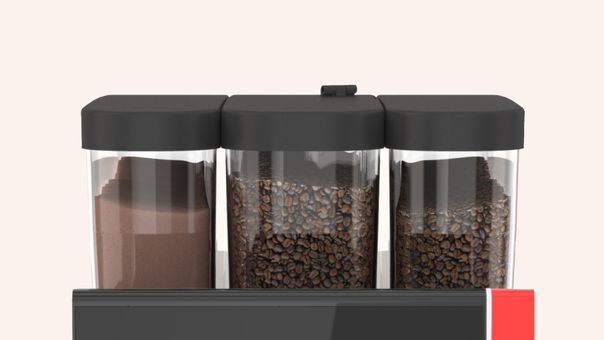

3 Bean Hopper (1200 g each)
Single Powder
1 Single Powder Container can be installed instead of third hopper.
Twin Powder
1 Twin Powder Container can be installed for two types of powder.
From the second hopper onwards, you can choose whether it’s configured for beans, powder or a twin-powder system – giving you maximum flexibility and beverage variety.
1 Bean Hopper (1200 g)
2 Bean Hopper (1200 g each)
3 Bean Hopper (1200 g each)
-
Single Powder
1 Single Powder Container can be installed instead of third hopper.
Single Powder
1 Single Powder Container can be installed instead of third hopper.
-
Twin Powder
1 Twin Powder Container can be installed for two types of powder.
Twin Powder
1 Twin Powder Container can be installed for two types of powder.
Each bean hopper is paired with a high-precision, slow-running grinder. For maximum flexibility, an optional espresso grinder can be assigned to every hopper – opening up the full spectrum of recipe possibilities.
High precision, slow running grinder
Espresso grinder
Each bean hopper is paired with a high-precision, slow-running grinder. For maximum flexibility, an optional espresso grinder can be assigned to every hopper – opening up the full spectrum of recipe possibilities.
High precision, slow running grinder
Espresso grinder
1 hot water boiler
For coffee and tea
2nd hot water boiler
For simultaneous dispensing of hot water and coffee
2 hot water boiler + 1 steam boiler
Alows dispensing of hot water at different temperatures and steam at the same time – fully independent from the coffee preparation process.
1 hot water boiler
For coffee and tea
2nd hot water boiler
For simultaneous dispensing of hot water and coffee
2 hot water boiler + 1 steam boiler
Alows dispensing of hot water at different temperatures and steam at the same time – fully independent from the coffee preparation process.
16 g brewing unit
1 brewing cycle of 21g coffee (90ml)
98sec
30 g brewing unit
For larger beverage volumes or double and triple shots.
Saves you time on triple shots - on 16oz beverages even 10-15% of the coffee needed.
1 brewing cycle of 21g coffee (90ml)
62sec
16 g brewing unit
1 brewing cycle of 21g coffee (90ml)
98sec
30 g brewing unit
For larger beverage volumes or double and triple shots.
Saves you time on triple shots - on 16oz beverages even 10-15% of the coffee needed.
1 brewing cycle of 21g coffee (90ml)
62sec

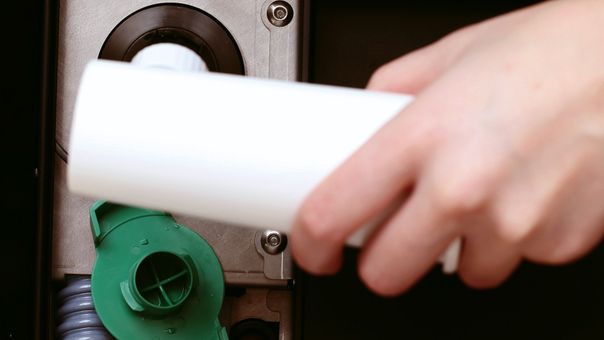

Standard Cleaning System
-
Descaling Uptime!
Prevents scale-related malfunctions by alerting you when it senses that descaling is needed. No service technician needed.

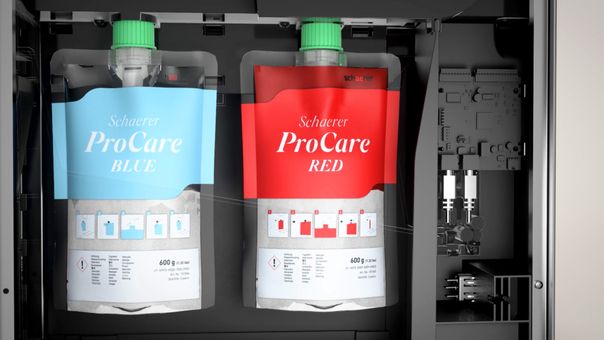

ProCare
Enables automatic system cleaning for up to 100 cleaning cycles.
Standard Cleaning System
Descaling Uptime!
ProCare
-
Prevents scale-related malfunctions by alerting you when it senses that descaling is needed. No service technician needed.
Enables automatic system cleaning for up to 100 cleaning cycles.
BestFoamTM
Barista-quality milk foam, hot and cold: The patented Best Foam™ system delivers hot and cold foam in a range of consistencies – smooth, creamy, or firm. It guarantees professional results, making every cappuccino, latte, or vegan alternative a true barista experience.
Works with external milk cooler.

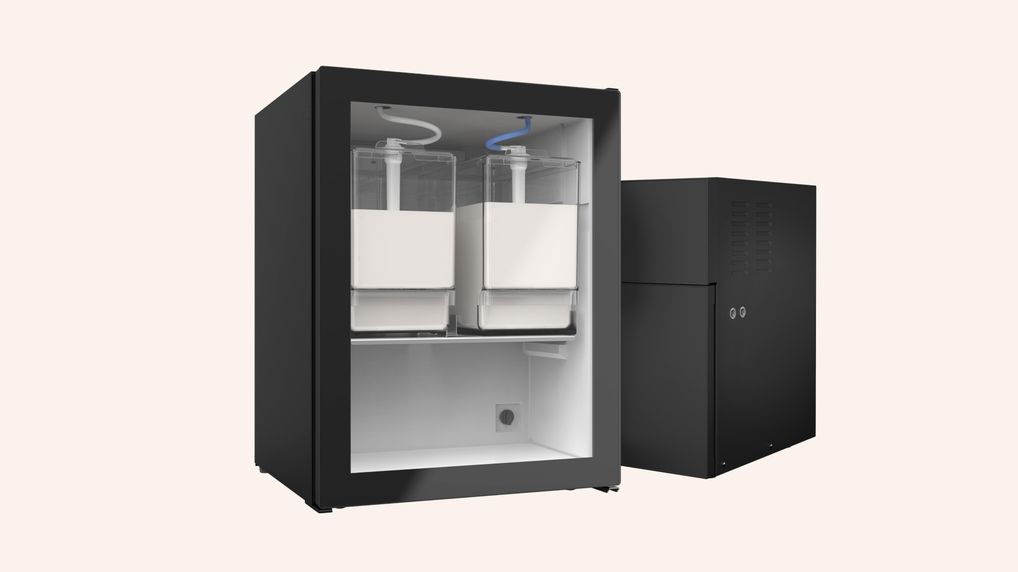

Twin Milk/Backup Milk
Twin Milk
Increase the variety of your offer by providing two different milk types stored in the 2 x 4.5 l or 2 x 10l containers.
Backup Milk
Two containers of the same milk. As soon as the first container is empty, the machine switches to the second. This creates time to refill the first container.
BestFoamTM
Twin Milk/Backup Milk
Barista-quality milk foam, hot and cold: The patented Best Foam™ system delivers hot and cold foam in a range of consistencies – smooth, creamy, or firm. It guarantees professional results, making every cappuccino, latte, or vegan alternative a true barista experience.
Works with external milk cooler.
Twin Milk
Increase the variety of your offer by providing two different milk types stored in the 2 x 4.5 l or 2 x 10l containers.
Backup Milk
Two containers of the same milk. As soon as the first container is empty, the machine switches to the second. This creates time to refill the first container.
Our integrated steaming and frothing systems allow both beginners and baristas to maximize the full potential of their Schaerer coffee machine.
Powersteam
Classic manual milk heating and frothing for pro baristas.
Autosteam
Fully automatic milk heating at desired temperature and manual milk frothing that requires some level of expertise. Foam consistency must be monitored visually.
Supersteam
Fully automatic milk heating and frothing at desired temperature and consistency for up to eight different beverages.
Our integrated steaming and frothing systems allow both beginners and baristas to maximize the full potential of their Schaerer coffee machine.
Powersteam
Autosteam
Supersteam
Classic manual milk heating and frothing for pro baristas.
Fully automatic milk heating at desired temperature and manual milk frothing that requires some level of expertise. Foam consistency must be monitored visually.
Fully automatic milk heating and frothing at desired temperature and consistency for up to eight different beverages.
Adjustable outlet
Can be manually adjusted between 65-185 mm.
Touchless outlet
Automatically adapts in height according to the cup-size.
Single outlet
-
Double outlet
-
Hot water outlet
Choose between central (for self-service) or left (for operated).
Adjustable outlet
Can be manually adjusted between 65-185 mm.
Touchless outlet
Automatically adapts in height according to the cup-size.
Single outlet
-
Double outlet
-
Hot water outlet
Choose between central (for self-service) or left (for operated).
Hot & Cold
High feet
Preparation for Flavour Point
Brewing accelerator
Additional water (Americano)
Makes possible to serve tasty and flavourful cold beverages at any time.
Choose between a feet height of 40mm or 70mm.
Integrate up to four syrups with the under-counter Flavour Point station.
Faster preparation of the drink.
To prepare the perfect Americano, the central spout can be equipped with a separate hot water dispenser.
Hot & Cold
Makes possible to serve tasty and flavourful cold beverages at any time.
High feet
Choose between a feet height of 40mm or 70mm.
Preparation for Flavour Point
Integrate up to four syrups with the under-counter Flavour Point station.
Brewing accelerator
Faster preparation of the drink.
Additional water (Americano)
To prepare the perfect Americano, the central spout can be equipped with a separate hot water dispenser.
Product Parameters
1L, N, PE
2L, PE
3L, N, PE
3L, PE
External dimensions
(width/height/depth)
Empty weight
220 - 240 V, 50/60 Hz
2000–2400 W, 10 A, 3 × 1 mm² 3000–3600 W, 16 A, 3 × 1.5 mm² 6000–7000 W, 30, A 3 × 4 mm²
200-220 V 2, 50/60 Hz
1800-2200 W, 10 A, 3 × 1 mm² 2600-3200 W, 15 A, 3 × 1.5 mm² 4700-5800 W, 30 A, 3 × 4 mm²
380–415 V 3N, 50/60 Hz
5700–6400 W, 16 A, 5 × 1.5 mm² 8700–10300 W, 16 A, 5 × 1.5 mm²
200–220 V 3, 50/60 Hz
4700–5800 W, 25 A, 4 × 2.5 mm²
330/576/730 mm
Approx. 55 kg (net)
1L, N, PE
220 - 240 V, 50/60 Hz
2000–2400 W, 10 A, 3 × 1 mm² 3000–3600 W, 16 A, 3 × 1.5 mm² 6000–7000 W, 30, A 3 × 4 mm²
2L, PE
200-220 V 2, 50/60 Hz
1800-2200 W, 10 A, 3 × 1 mm² 2600-3200 W, 15 A, 3 × 1.5 mm² 4700-5800 W, 30 A, 3 × 4 mm²
3L, N, PE
380–415 V 3N, 50/60 Hz
5700–6400 W, 16 A, 5 × 1.5 mm² 8700–10300 W, 16 A, 5 × 1.5 mm²
3L, PE
200–220 V 3, 50/60 Hz
4700–5800 W, 25 A, 4 × 2.5 mm²
External dimensions
(width/height/depth)
330/576/730 mm
Empty weight
Approx. 55 kg (net)
